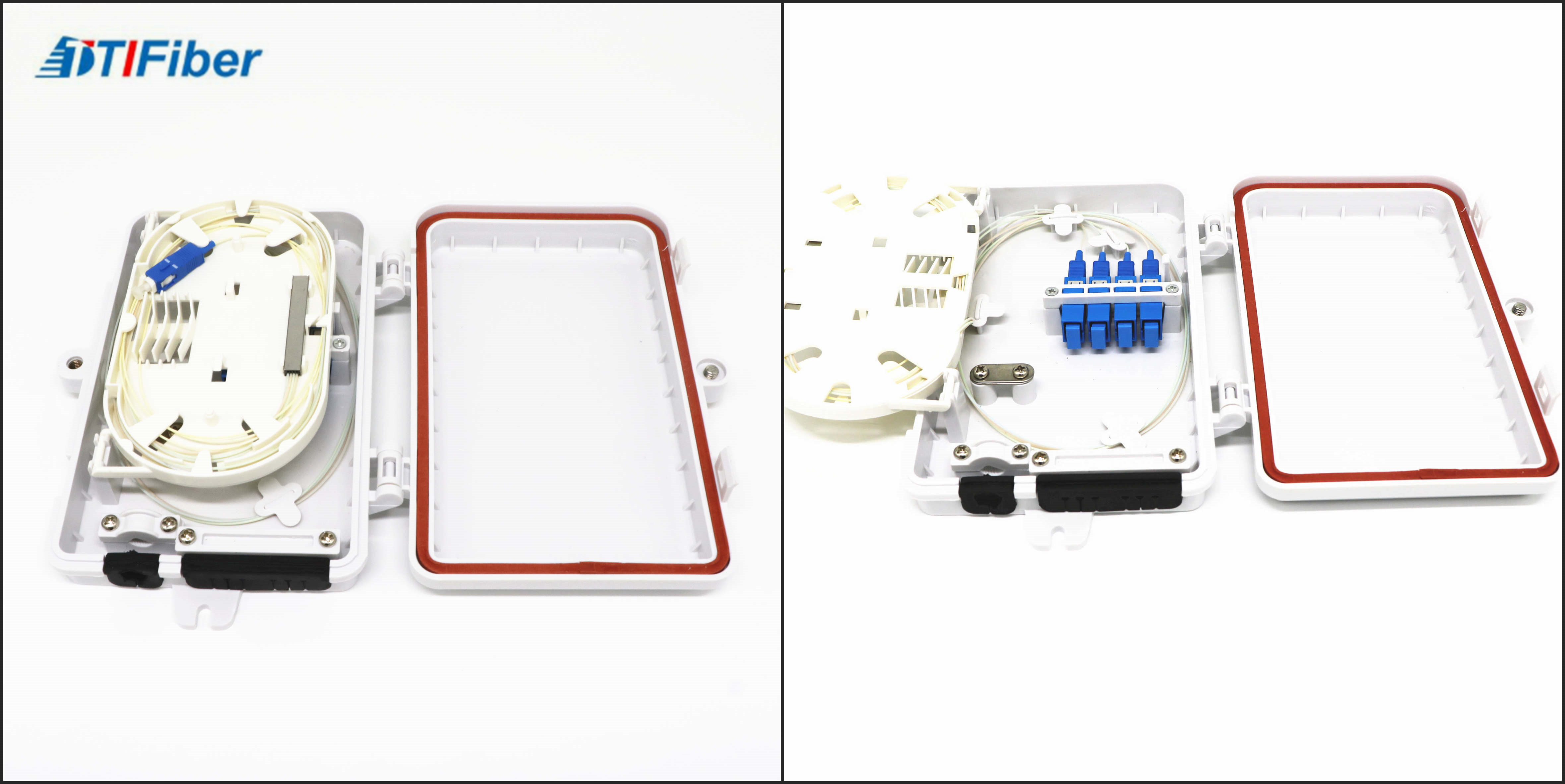

FTTH Optical Fiber Distribution Box , Fiber Optic Splitter Terminal Box 6 8 12 24 48 Port

Outdoor Optical Fiber Distribution Box FTTH Indoor 6 8 12 24 48 Port Fiber Optic Splitter Terminal Box


Description:

Fiber Optic Splitter Distribution Box is made of high impact plastic. It has industry standard user interface.

Features:

• This box could be used for wall-mounted applications;
• Suit for Outdoor & Indoor.
• Waterproof, Anti-UV, Ultra violet resistant and rainfall resistant.
• Light weight, small cubage, small installation size, reliable sealing.
• Could be connected FTTH Drop cables inside.
• The base and cover of the box adopts “self-clip” &”screw-clip” two times lock method, which is better to use in outdoor for high sealing and waterproof.


Application:


• FTTH, FTTB, FTTC
• Telecommunication Network
• Local Area Network
• CATV



Installation:Wall hanging:

1 According to the backplane mounting hole’s distance, hit 4 mounting holes on the wall, and knock the plastic expansion sleeve.
2 Fixed the box on the wall with M8 * 40 screws.
3 Position the upper end of the box into the wall hole, and then use M8 * 40 screws fix the box on the wall.
4 Check the box installation, close the door after qualified. In order to prevent rainwater from entering the box, the box should be tightened by a key column.
5 Insert the outdoor optical cable and butterfly type optic cable according to the construction requirements.

Product configuration list:




Shipping:

1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
2. Airport to Airport: by air
3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
