Hybrid Fiber Optic Adapter

Place of Origin : Guangdong, China

Brand Name : TTI

Certification : ROHS, SGS

Model Number : FOA-Bare

MOQ : Negotiable

Price : Negotiable

Packaging Details : 50pcs/Case

Delivery Time : 2-3 days

Payment Terms : T/T

Supply Ability : 10000pcs/day

Contact Now

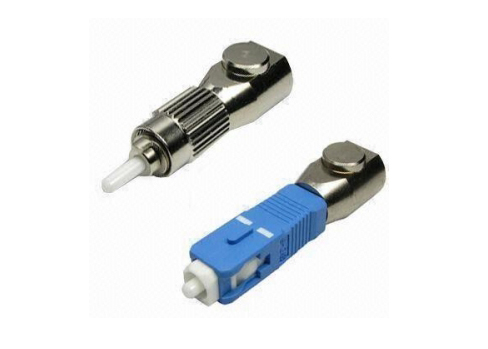

Simplex Bare SC - ST Hybrid Fiber Optic Adapter with Metal Housing






Quick Details

  1. Type: Bare fiber adapter
  2. End-face: UPC, APC
  3. Sleeve: Ceramic sleeve, Bronze sleeve
  4. Housing: Zinc alloy, Bronze, Plastic
  5. Mode: Singlemode and Multimode
  6. Connector: FC, ST, SC, LC...


Features:

  1. Precision mechanical dimensions
  2. Excellent repeatability
  3. FC mode used metal thread connecting structure
  4. SC, LC, MU, MTRJ mode used pluggable tight locking structure
  5. ST mode used Bond with bayonet locking structure


Application:

  1. Fiber optic communication network
  2. Optical Broadband Access Network
  3. CATV system
  4. Optic instrumentation
  5. Optic LAN
  6. Adapter docking


Specification:



Parameter Unit FC,LC,SC ST,MU MTRJ,MPO
SM MM SM MM SM MM
PC UPC APC PC PC UPC PC PC UPC PC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35
Operating wavelength nm 1310,1510 1310,1510 1310,1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~+75 -40~+75 -40~+75
Storage temperature °C -45~+85 -45~+85 -45~+85
Cable diameter mm Φ3.0,Φ2.0,Φ0.9 Φ3.0,Φ2.0,Φ0.9 Φ3.0,Φ2.0,Φ0.9

















Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Hybrid Fiber Optic Adapter




Hybrid Fiber Optic AdapterHybrid Fiber Optic Adapter
