Low insertion loss optical fiber ferrule with PC UPC APC End - face



Low insertion loss optical fiber ferrule with PC UPC APC End - face





Quick Detail:

1. Name: UPC APC Singlemode optical fiber ferrule
2. Material: Ceramic/Zirconia, Metal
3. Outer Diameter : φ2.5mm(FC/SC/ST), φ1.25mm(LC/MU)
4. Ferrule End-face: UPC APC
5. Outer Diameter: 2.499mm +/-0.0005(SM), 2.499mm +/-0.001(MM)
6. Inner Diameter: 125,125.5,126um(SM), 127,128um(MM)



Description:



Fiber optic ceramic ferrules are important component of optical connectors and fiber optic patch cord, ceramic ferrules are made by ZrO2, with inner diameter 0.125mm, length range from 3mm to 15mm depends on different types of optical connectors.





Features:

1. Good concentricity and size precision
2. High strength and endurability, good anti-aging performance
3. Low insertion loss and high return loss and pull out performance
4. Wear-resistance
5. Flange: SUS303, Brass, Gild (optional)
6. Approved by RoHS, ISO9001
7. Customized specifications welcomed



Application:

1. Broadband
2. FTTX
3. Data network communication
4. Military data network communication



Specification:



Applications	PC		APC
	SM Fiber	MM Fiber	SM Fiber
Outer Diameter	Ø2.499±0.0005	Ø2.499±0.0001 -0.0023	Ø2.499±0.0005
Concentricity	≤ 1.0	≤ 3.0	≤ 1.0
Hole Diameter	Ø125.0, Ø125.5,Ø126.0, +0.001	Ø126.0, Ø127.0+0.001	Ø125.0,Ø125.5,Ø126.0, +0.001
Material	All Zirconia































Shipping:

1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
2. Airport to Airport: by air
3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)



Product Tags:

ceramic ferrule



stainless steel ferrule

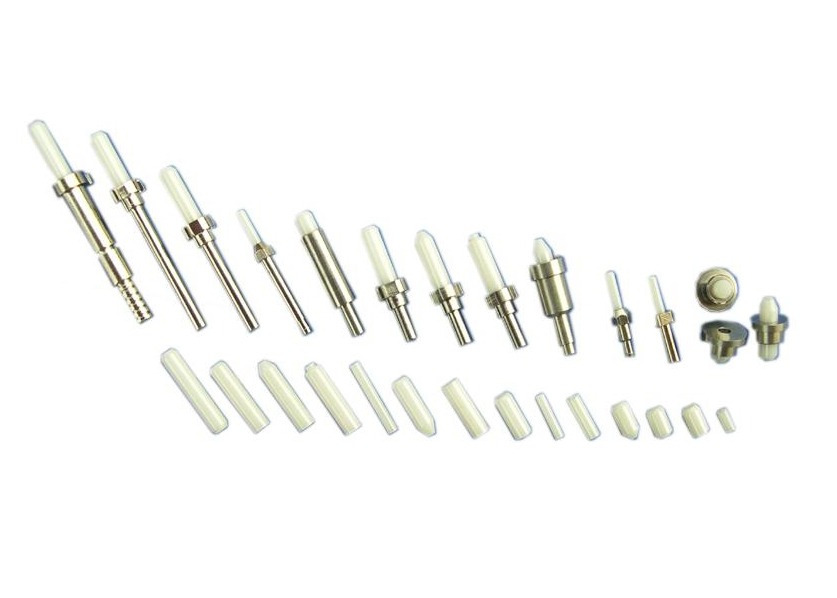

Low insertion loss optical fiber ferrule with PC UPC APC End - face Images
