1×32 PLC Singlemode optical fiber splitter with SC / APC Fiber Connectors

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : TTI

Certification : ROHS, SGS

Model Number : PLC-132

MOQ : Negotiable

Price : Negotiable

Packaging Details : 1pcs per carton

Delivery Time : 1pcs per carton

Payment Terms : T/T, , Monthly settlement

Supply Ability : 70000pcs/Month

Contact Now



1×32 PLC Singlemode optical fiber splitter with SC / APC Fiber Connectors





Quick Detail:



  1. Name: 1×32 PLC
  2. Connector: SC/APC fiber connectors
  3. Mode: Singlemode
  4. Fiber type: G652D, G657A1, G657A2 fiber
  5. Cable jacket: Black LSZH jacket
  6. Cable length: 1M, 1.5m…customized


Applications:

  1. FTTX (FTTB, FTTH, FTTC) Systems
  2. Optical Signal Distribution
  3. Passive Optical Network (PON)
  4. Cable Television (CATV)

Features:

  1. Low Insertion loss
  2. Low PDL (Polarization Dependent Loss)
  3. Wide Operating Wavelength: From 1260nm to 1650nm
  4. Excellent Environmental & Mechanical Stability



Specification:



Table 1 – 1×N PLC Splitter


Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS





Table 2 – 2×N PLC Splitter


Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS


Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector.



Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)


Our service:

  1. We could print your company name on the cable.
  2. Standard and customized OEM products from small to large quantity are welcome.
  3. Compliance with global environmental industry with RoHS and SGS standards.
  4. All products are 100% fully tested by our technical expertise.


Company Information:

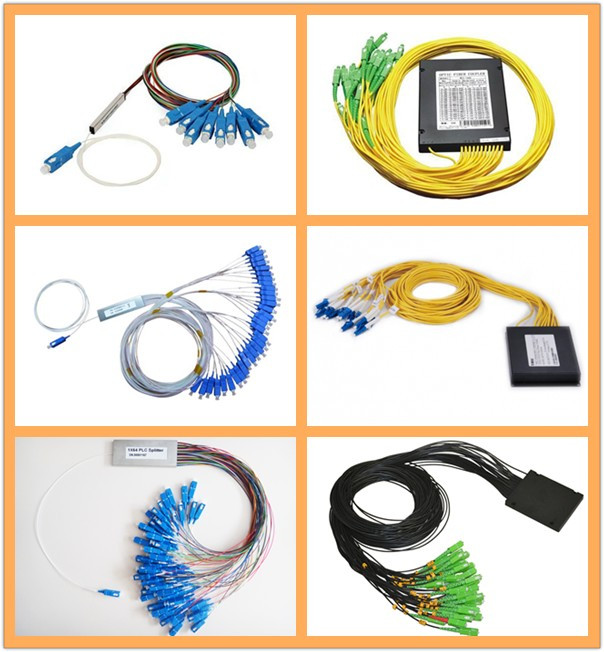

  1. We build and supply PLC splitter and devices to meet the market demands.
  2. We offer custom-made products, you can order any length, any combination, tailor-made products fit for your need.
  3. We have a full set of quality control system and guarantee the high quality of our products.
