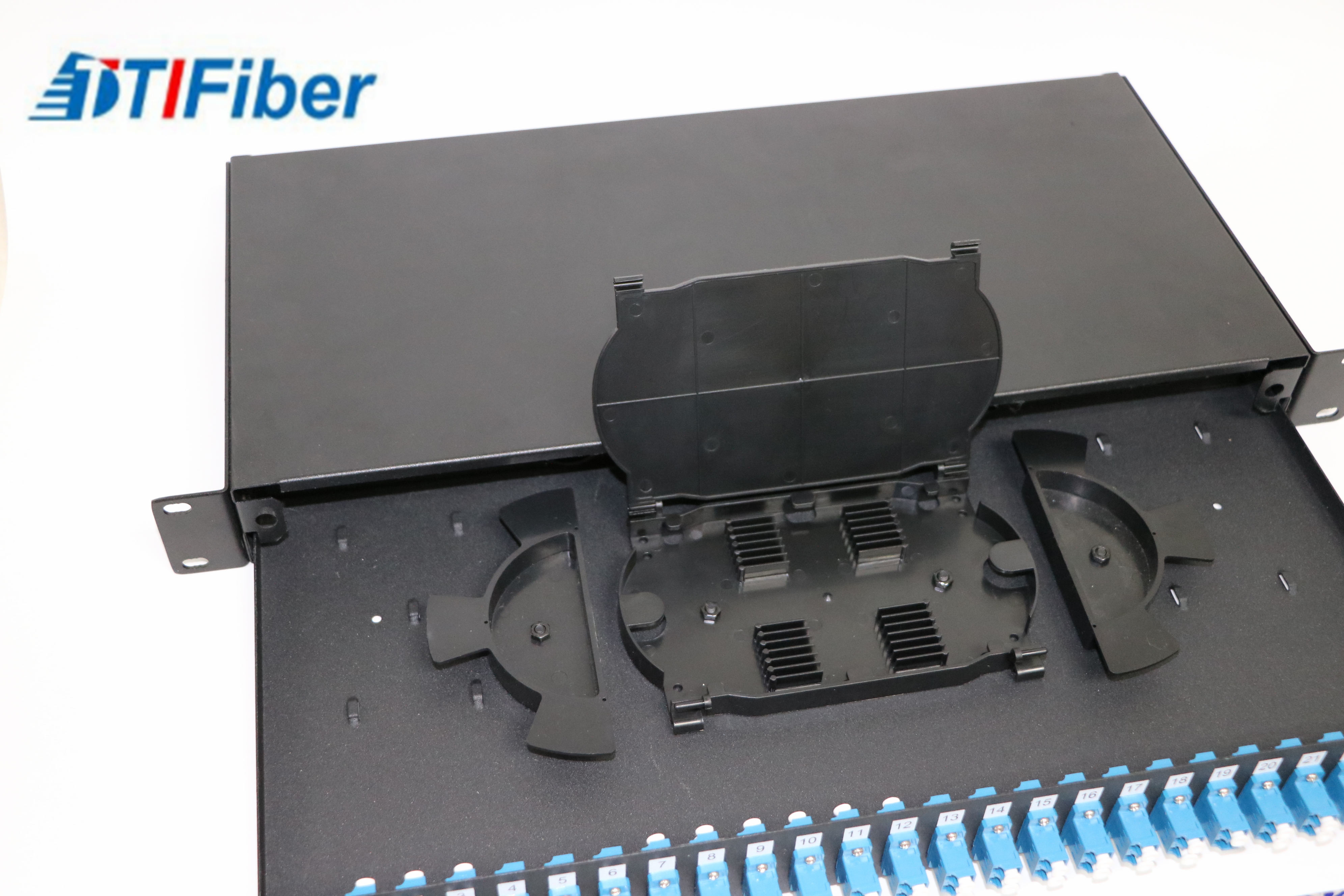

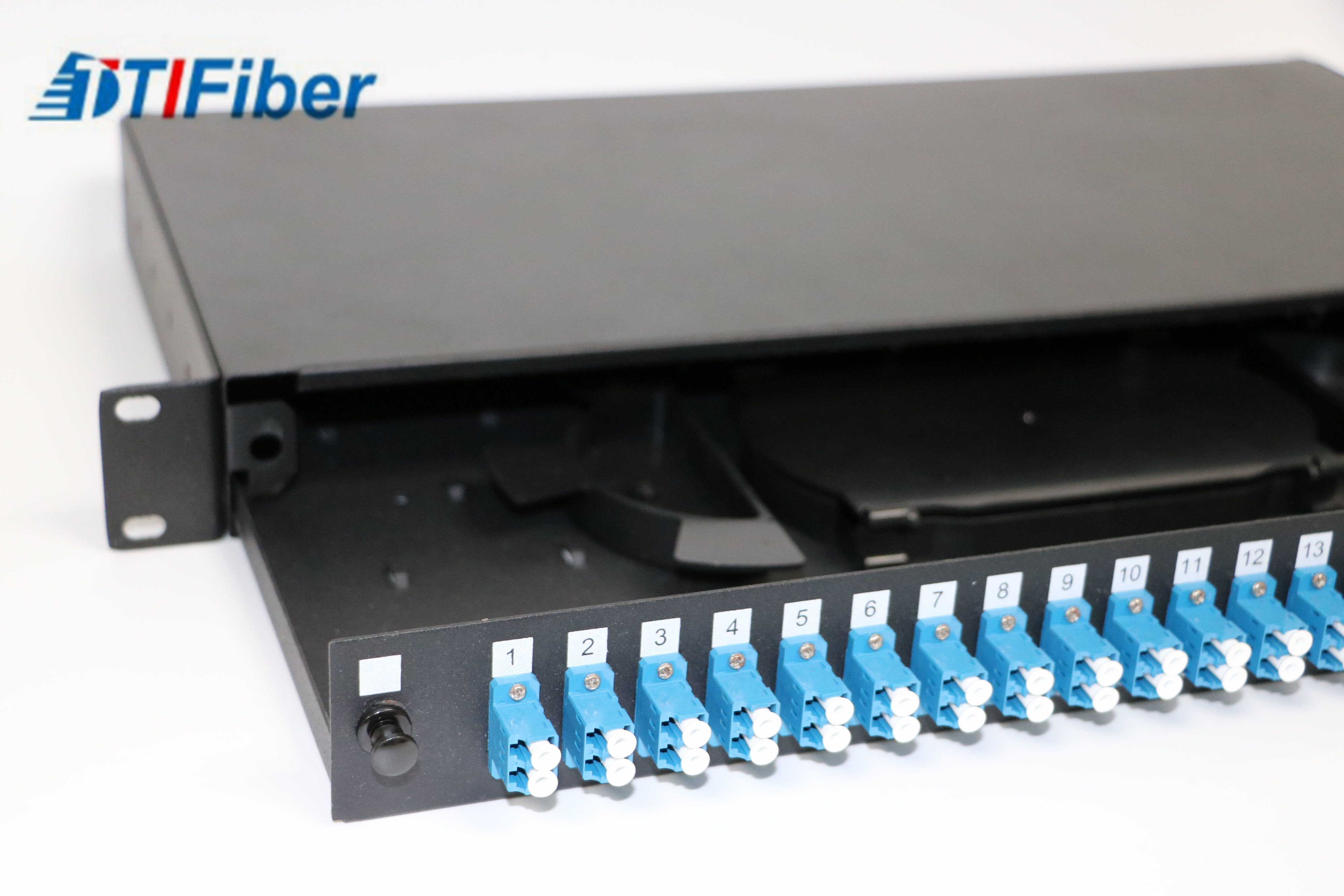

Loaded LC48 Port Fiber Optic Terminal Box With Fiber Optic Patch Panel

  • 1
  • 2

Brand Name : TTI or OEM

Model Number : RS-LCD-48P

Certification : CE,FCC,ROHS,ISO9001

Place of Origin : China

MOQ : 20pcs

Payment Terms : , T/T, L/C, D/A,

Delivery Time : 3-5 working days

Packaging Details : 1pc/Box

Price : Negotiation

Supply Ability : 3000 pcs per day

Porducts : Loaded LC 48 Port Fiber Optic Patch Panel With Fiber Optic Adapter

MOQ : 20pcs

Warranty : 3 Years

Material : Cold Rolled Steel

Height : 1U

Port Type : ST,SC,FC,LC

Contact Now

Loaded LC48 Port Fiber Optic Terminal Box With Fiber Optic Patch Panel





Quick Detail:

  1. Box type: Fixed type, Sliding type, Dummy drawer type
  2. Suitable Adapter: FC, SC, ST, LC
  3. Adapter port type: FC(Simplex), ST(Simplex), SC(Simplex/Duplex), LC(Duplex)
  4. Max capacity: 1U(12core/24core), 2U(48core), 3U(72core), 4U(96core)
  5. Material: Cold rolled steel
  6. Max. fibers of splice tray: 48core



Features:

  1. Easy to repeated opening and using

  2. Could deploy valve and Grounding device

  3. 19" standard slide-out design, easy and convenient on assembling

  4. Cabinet surface covered with electrostatic powder coating, luxury and beautiful

  5. Bend radius of optical fiber more than 40mm

  6. Easy to access the back and splice tray

  7. Apply for SC/ST/FC/LC pigtail and adapter

  8. Applicable in the branch connection of optical cable termination

Specification:





Type RS-1U RS-2U RS-4U
Size(mm)
L*W*H		 430*300*1U 430*300*2U 430*300*4U
Max Capacity (Core) 48 96 192
Outer Carton Dimension(mm) 485*420*350/5pcs 500*355*550/4pcs 500*350*540/1PCS
Outer Carton Weight(Kg) 27.5/5pcs 26.3/5pcs 18.9/PCS



Technical Data:



Model RS-LCD-48P
Size(mm): L*W*H 430*300*1U
Max capacity of splice tray: 48core(1U)
Optical fiber winding radius: ≥40mm
Fiber length left in tray: none
Fiber length left in tray: ≥1.6m
Fiber capacity: 48 cores
Working temperature: - 400°C ~ + 600°C
Lateral pressure-resistance: 500N
Shock-resistance: 750N




Loaded LC48 Port Fiber Optic Terminal Box With Fiber Optic Patch PanelLoaded LC48 Port Fiber Optic Terminal Box With Fiber Optic Patch PanelLoaded LC48 Port Fiber Optic Terminal Box With Fiber Optic Patch Panel
