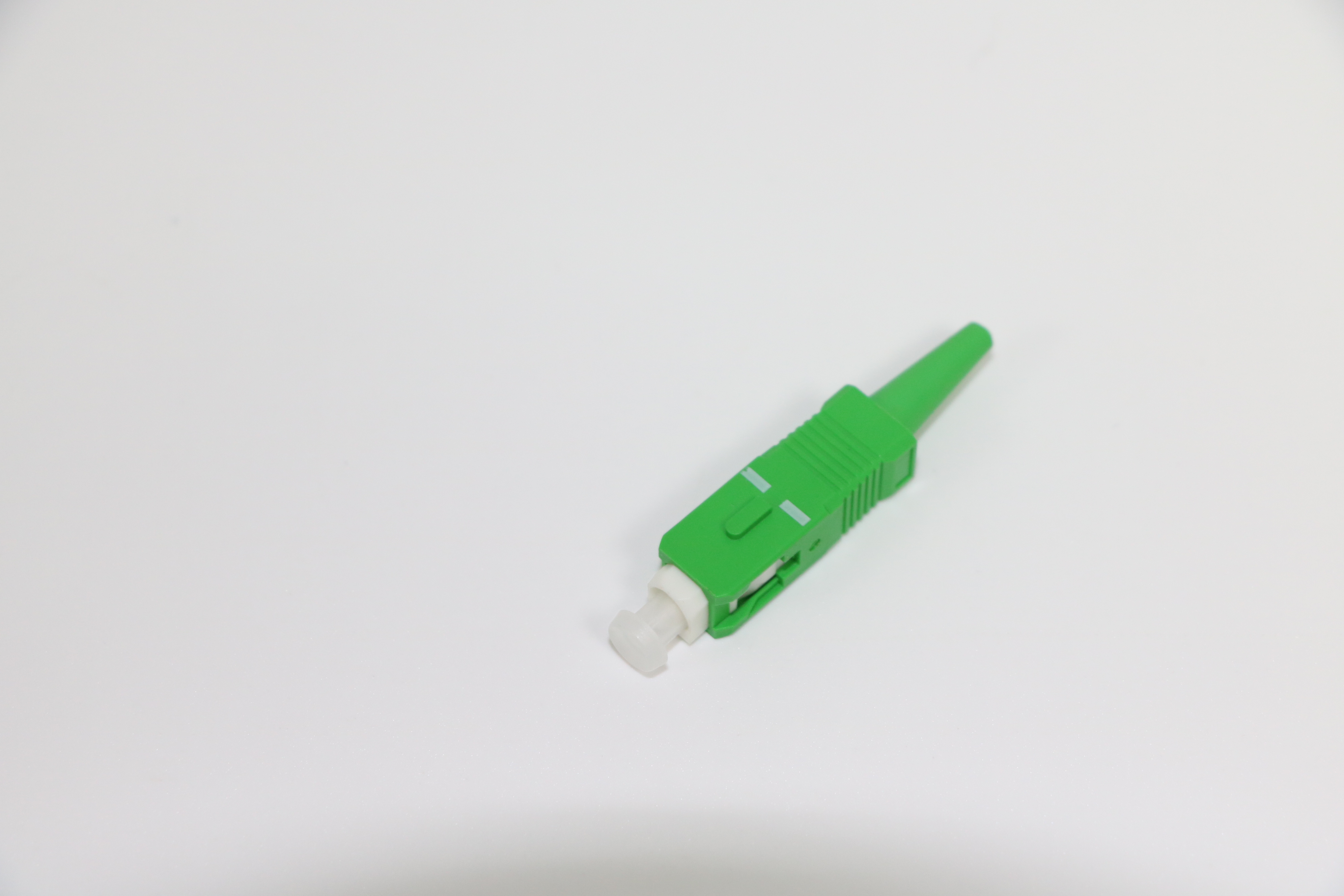

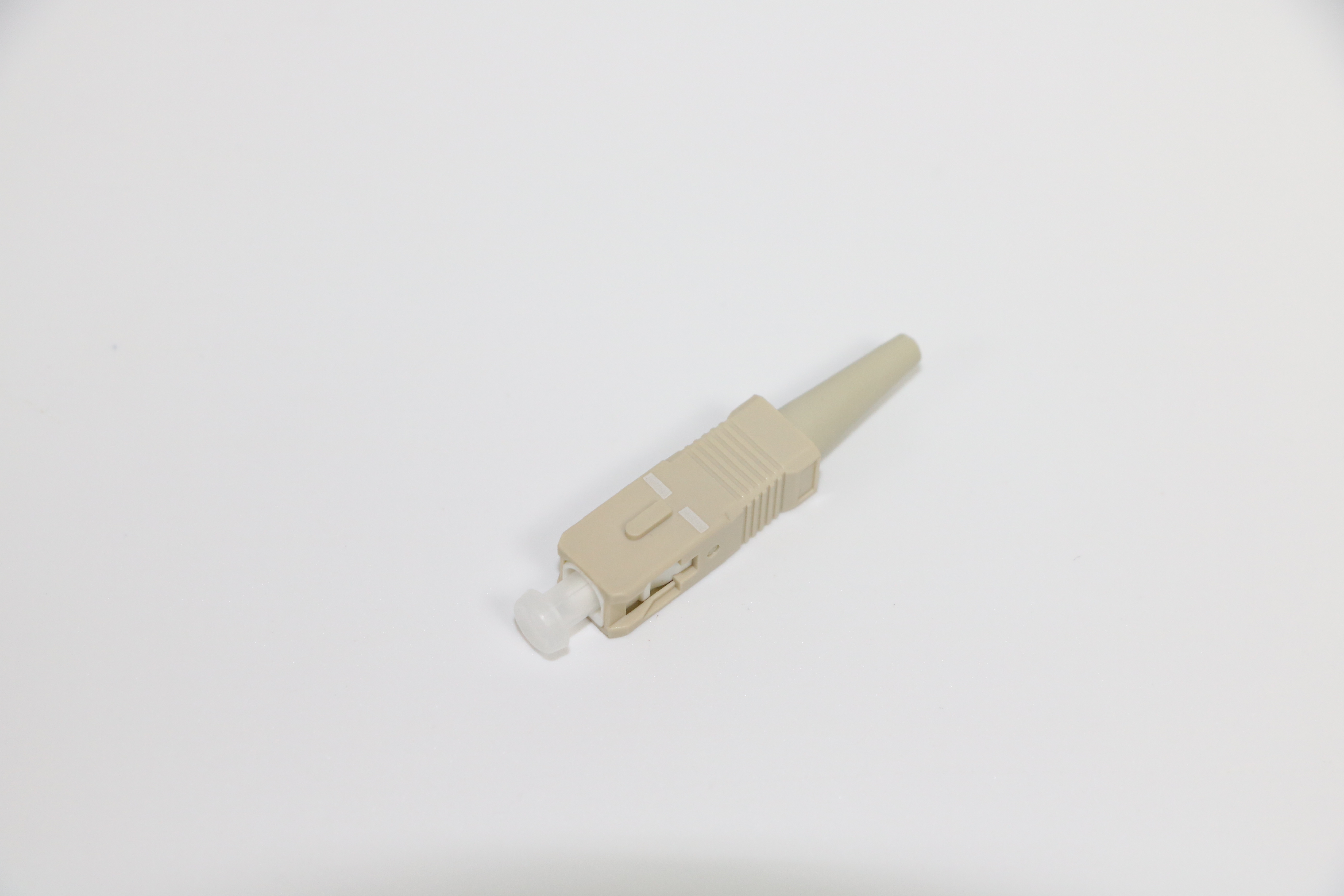

0.9/2.0/3.0mm Singlemode Duplex SC / PC Drop Wire optical Fiber Cable Connectors

Brand Name : TTI

Model Number : CSC-DX

Certification : ROHS, SGS, ISo9001

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, , Paypal, Monthly ttlement

Supply Ability : 10000pcs/Day

Delivery Time : in 2-4 days

Packaging Details : 200pcs/PE bag

Connector : SC

Fiber Mode : Singlemode

Ferrule : Ceramic

Diameter : 0.9/2.0/3.0mm

Ferrule of end-face : PC, UPC, APC

Color : Bule,Green or Customized

Contact Now



Singlemode Duplex SC / PC Drop Wire Optic Fiber Cable Connectors





Specification:



Insertion loss SM ≤0.20 dB
MM ≤0.25dB
Return loss P C ≥50 dB
UPC ≥55 dB
APC ≥65 dB
Durability <0.20 dB typical change, 1000 mating
Ferrule hole sizes SM: 125.0+1/-0um concentricity:≤1.0um
125.5+1/-0um ≤1.0um
126.0+1/-0um ≤1.0um
MM:125 um concentricity:1≤3 um
127 um ≤3 um
128 um ≤3 um
Operating temperature -40~80°C





Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)



0.9/2.0/3.0mm Singlemode Duplex SC / PC Drop Wire optical Fiber Cable Connectors

Feature:

  1. Push-pull latching mechanism
  2. Non-optical disconnect performance
  3. High quality zirconia ferrules
  4. Materials meet RoHS requirements



Application:

  1. Telecommunication
  2. Computer networks
  3. CATV networks
  4. Active device termination
  5. Instrumentation
 0.9/2.0/3.0mm Singlemode Duplex SC / PC Drop Wire optical Fiber Cable Connectors
