Female To Male Type Fixed Optical Attenuator SC / LC Multimode High Precision

Brand Name : TTI

Model Number : Attenuator

Certification : ISO9001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T,Paypal

Supply Ability : 5000pcs/day

Delivery Time : 3-5 working days

Packaging Details : PE bag

Product name : Attenuator

Type : Female to Male

Application : LAN, CATV

Package : PE

Return loss : UPC>35db

Contact Now

Female to Male Type Fiber Optic Attenuator SC / LC / multimode Attenuator

A : Description

Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power at a certain level, the most commonly used type is female to male plug type fiber optic attenuator, it has the optical fiber connector at one side and the other side is a female type fiber optic adapter, fiber optic attenuator name is based on the connector type and the attenuation level. SC 5dB fiber optic attenuator means this attenuator uses SC fiber optic connector and it can reduce the optical fiber power level by 5dB. Commonly used attenuation range is from 1dB to 20dB

B : Feature

a) High precision

b) Good stability

c) Max operation power (1w)

d) Good for high power source

e) Removable structure,easy to repair

C: Specification

Attenuation Value 1dB ~ 30dB
Operating Wavelength 850 ~ 1310nm 62.5 or 50um Multimode
Premium
Return Loss	UPC >55dB
	APC >65dB
Attenuation Accuracy	1 ~ 7 dB ±0.5dB
	8 ~ 12 dB ±0.7dB
	13 ~ 17 dB ±1.0dB
	18 ~ 25 dB ±1.3dB
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Operating Temperature Range -40 to 75
Storage Temperature Range -40 to 85
Humidity 95%RH

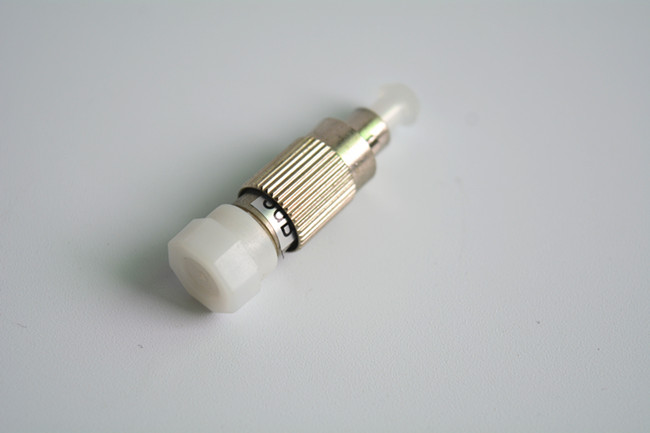

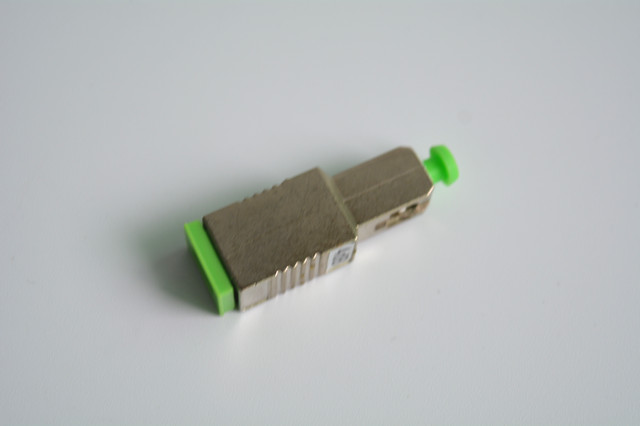

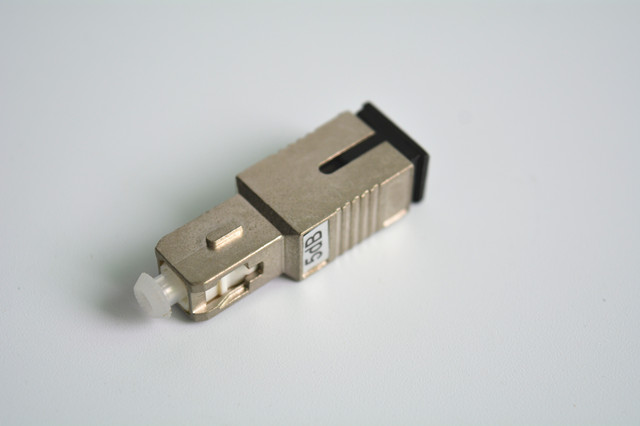

D: Product picture

Female To Male Type Fixed Optical Attenuator SC / LC Multimode High Precision
