GYXTC8S Overhead Duct Fiber Optic Cable G652D Figure 8 Aerial 24 Core PVC LSZH PE Jacket

Brand Name : TTI

Model Number : GYXTC8S

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : Negotiable

Supply Ability : 100000meters/week

Delivery Time : 5-8 works day

Packaging Details : wooden drum

Number of Conductors : ≥ 10

Color : Black

Application : Telecommunication

Jacket : PVC LSZH PE

Fiber count : 2-288 Cores

Length : 1m/2m/5m/customized

Fiber Type : G652D/G657A

Price : Negotiable

Contact Now

Fiber Optic Cable G652D Figure 8 Aerial 24 Core GYXTC8S Overhead Duct Cable

Dimensional Characterstics
Part Number	Fiber Count	Outside Diameter (mm)	Stranded Units	Cable Weight (kg/km)	Tensile Load		Crush Load		Bend Radius
Part Number	Fiber Count	Outside Diameter (mm)	Stranded Units	Cable Weight (kg/km)	S (N)	L (N)	S (N)	L (N)	S (N)	L (N)
GYXTC8Y0809P-BK	8	7.0/13.5	7*1.0mm	115	3000	1000	1000	300	20D	10D
GYXTC8Y1209P-BK	12	7.0/13.5	7*1.0mm	115	3000	1000	1000	300	20D	10D
GYXTC8Y2409P-BK	24	7.0/13.5	7*1.0mm	115	3000	1000	1000	300	20D	10D
Note: GYXTC8Y denotes Figure 8 Central loose tube aerial optical cable ;09 denotes fiber type (09: SM)
	P denotes PE sheath; BK denotes black outer sheath;

Mechanical & Environmental Characteristics
Item				Characteristics
Operation temperature				-20℃~ + 60℃
Storage temperature				-40℃~ + 60℃
Sheath Material				P:PE

Description:

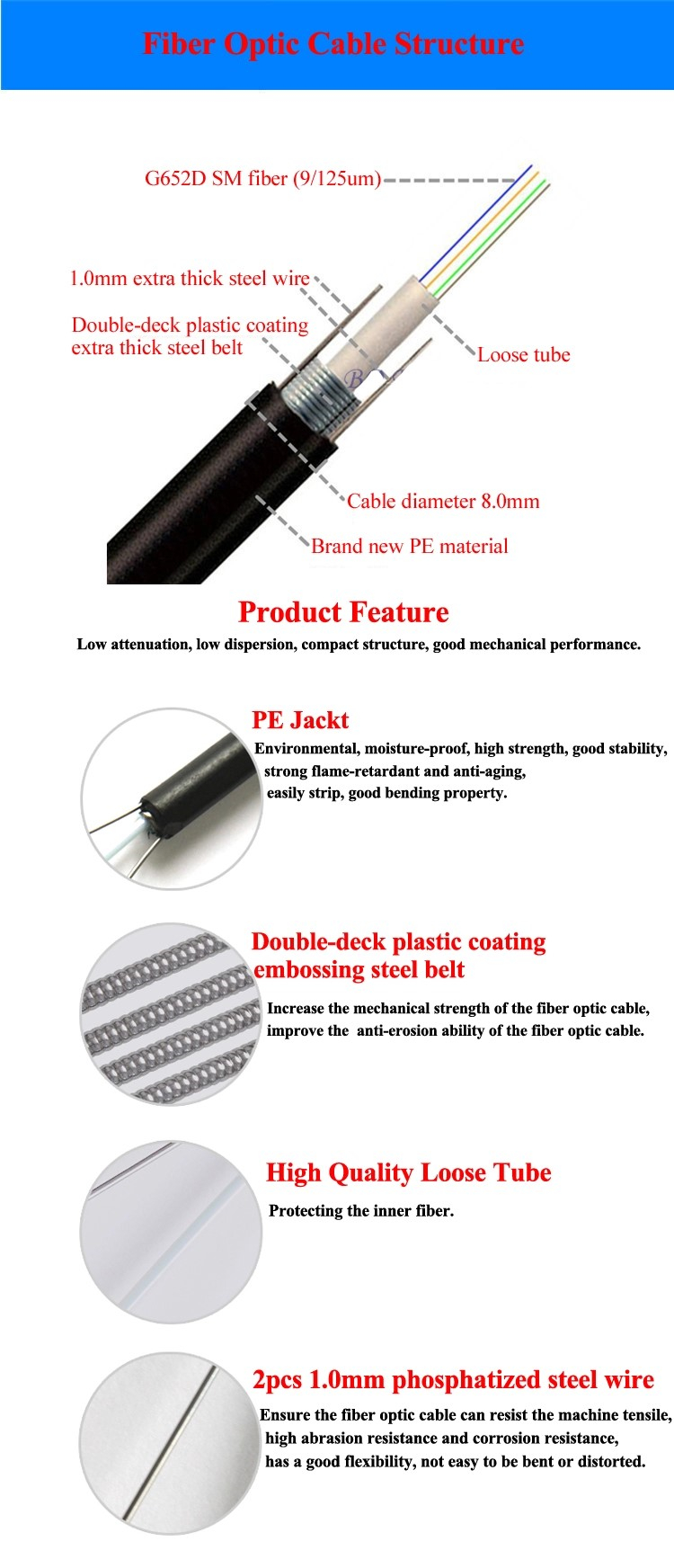

.Loose tube style ,figure-8 optical fiber cable Jelly compound,optical fiber cable with steel wire messenger wire. .Filling compound and water-proof tape. .Incorporation steel messenger wire suitable for overhead installation as pole to pole or pole to premises. .High strength, tracking-resistant sheath.

Applications:
· Usable for aerial installation
· Long-haul communication systems
· Junction communication systems
. Subscriber network systems
. Local area network systems
Fiber Colour Code:
01- Blue		04- Brown		07- Red		10- Purple
02- Orange		05- Grey		08- Black		11- Pink
03- Green		06- White		09- Yellow		12- Aqua


The colour arrangement of optical fiber is specified in the fiber colour code
S: short term; L: long term; L.T: loose tube
Crush load: N/100mm; D: cable diameter
GY: outdoor cable;T: jelly compound; C8: Figure 8 cable
S: Steel tape + PE outer sheath

GYXTC8S Overhead Duct Fiber Optic Cable G652D Figure 8 Aerial 24 Core PVC LSZH PE Jacket

Product Tags:

multimode fiber patch cord

fiber optical cable

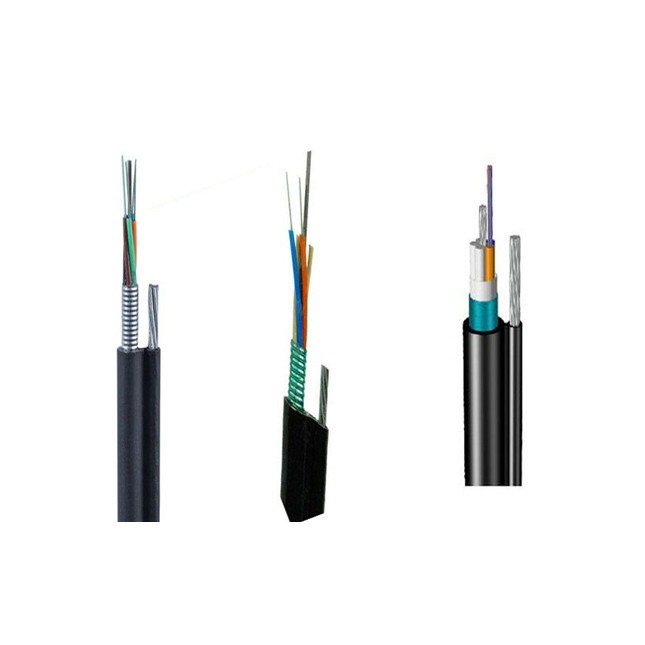

GYXTC8S Overhead Duct Fiber Optic Cable G652D Figure 8 Aerial 24 Core PVC LSZH PE Jacket Images
