GYTA Stranded Loose Tube Fiber Optic Cable High Standard

Brand Name : TTIFIBER/OEM/ODM

Model Number : GYTA

Certification : ISO9001, ROHS, CE, CE and ROHS, ISO9001/CE/ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C, PayPal, Western Union

Supply Ability : 1000KM/Month

Delivery Time : 3-25 Days, depends on order qty.

Packaging Details : Wooden Drum to Package

Color : Black, Usually Black Color, blue or others, Aqua, yellow

Material : Available upon customer's request, PVC

Fiber type : G652D, G657A2, single mode or multi mode

Application : FTTH, OUTDOOR, Aerial, armored outdoor optic fiber cable, Audio signal Transmission

Number of conductors : ≥ 12

Product name : fiber optic launch cable, ftth drop cable, 2core FTTH single mode indoor/outdoor fiber optic, armored 2 core field optical fiber cable assembly for field operation

Fiber count : 1-144 Core

Length : 700M or as your required, 61m, 500m, 2KM

Jacket material : LSZH, PVC, PE, TPU, PVC/LSZH

Operating temperature : -55~+85°C, -20℃ to 70℃, -40°C to + 70°C

Package : Plastic Bag, Carton, 1km/roll

Sheath : MDPE/HDPE, PLENUM, LSZH, PVC, ect

Cable diameter : 0.25MM, 2.2±0.07

Strength member : steel wire, Metallic wire, FRP

Name : ftth drop cable Outdoor Fiber Optical Cable, fiber optic patchcord

Strengthen member : FRP or Steel 0.4mm/0.45mm/0.5mm, 1 steel wire+ 2 FRP

Contact Now

Factory Direct Supply High Standard GYTA Stranded Loose Tube Optic Fiber Cable



Description

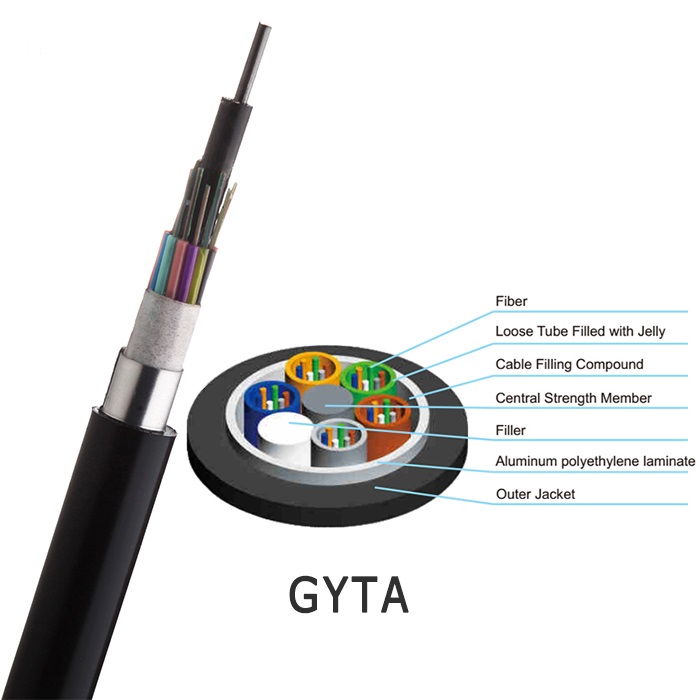

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.



GYTA Stranded Loose Tube Fiber Optic Cable High Standard

GYTA Stranded Loose Tube Fiber Optic Cable High Standard

GYTA Stranded Loose Tube Fiber Optic Cable High Standard



Features:

-Good mechanical and temperature performance

-High strength loose tube that is hydrolysis resistant

-Special tube filling compound ensure a critical protection of fiber

-Crush resistance and flexibility

-The following measures are taken to ensure the cable watertight

-Steel wire used as the central strength member

-Loose tube filling compound

-100% cable core filling

-APL moisture barrier

-PSP enhancing moisture-proof

-Water-blocking material



Technical data

Fiber Num. Outer diameter (mm) Weight (kg/km) Tension (N) Crash loading (N/100mm)
Short term Long term Short term Long term
2-30 12.9 160 3000 1000 3000 1000
32-60 13.4 175
62-72 14.1 204
74-84 15.4 245
86-96 15.4 245
98-120 17.2 285
122-144 19 334



Performance

Application : Used for long haul communication and local network

Installation method : burial and duct

Operating temperature : -40°C ~ +70°C

Permisson bent radius Static :12.5 times O.D.

Dynamic :25 times O.D.



No. of cable
12
24
48
Fiber Model
G.652D
Design
(StrengthMember+Tube&Filler)
1+5
Central Strength Member
Material
Steel Wire
Diameter(±0.5)mm
1.4
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.72
1.72
2.0
Thickness(±0.03)mm
0.30
0.30
0.32
The Max.Core NO./Tube
6
6
12
Filler Rope
Material
LDPE
Diameter(±0.06)mm
1.7
1.7
2.0
NO.
3
1
1
Moisture Barrier
Material
Polymer Coated Aluminum Tape
Thickness(±0.03)mm
0.20
Inner
Sheath
Material
MDPE
Thickness(±0.2)mm
0.9
Armoring
Material
Polymer Coated Steel Tape
Thickness(±0.2)mm
0.22
Water Bloaking Layer
Material
Filling Compound
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
1.8
Cable Diameter(±0.5)mm
12.5
12.5
13.1
Cable Weight(±10)kg/km
152
167
167
Attenuation
1310nm
0.35dB/ km
1550nm
0.21dB/ km
Min. bending radius
Without Tension
12.5×Cable-φ
Under Maximum Tension
25.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70





GYTA Stranded Loose Tube Fiber Optic Cable High Standard



 GYTA Stranded Loose Tube Fiber Optic Cable High Standard
