SC APC FTTH Fiber Optic Attenuator , multimode optical attenuator

Brand Name : TTI

Model Number : FA-SC1

Certification : ROHS, SGS

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, , PayPal，Monthly settlement

Supply Ability : 5000pcs/Day

Delivery Time : 2-3 days

Packaging Details : 1PCS/PE Bag

Connector : SC

Type : Female to male

Material : Plastic,Metal

Polishing : APC

Operating Wavelength : 1310~1550

Fiber Mode : Singlemode Multimode

Contact Now

Description:
Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.

Features:

Complied with Telcordia (GR-910-CORE and GR-1221-CORE).
Visual Tested with 800X magnification: Three Times (After Polishing, Before Assembly, Before Delivery)
100% Geometrical Inspection: Radius(10-25mm/PC), Offset(0-50um), Fiber Height(+/-50nm)
High Optical Power Endurance: up to 1000mW (=1W)
High Reliability: Specified for Over 500 mating

Application:

Testing Equipment
Fiber Optic Communication Systems
DWDM Equipment
Fiber Optic CATV

Specification:

Item	Parameter
Model	Fixed, Female&Male, In-line, Variable
Operating Wavelength	SM:1310/1550nm MM: 850/1300nm
Attenuation Range	1~30dB
Return Loss	PC:≥50dB UPC: ≥55dB APC: ≥60db
Attenuation Tolerance	≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power	1000mW
Polarization Dependent Loss	≤0.1dB
Working Temperature	-40°C~+75°C
Storage Temperature	-40°C~+ 85°C
Humidity	95%RH

Shipping:

Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

SC APC FTTH Fiber Optic Attenuator , multimode optical attenuator

Product Tags:

fixed optical attenuator

variable optical attenuator

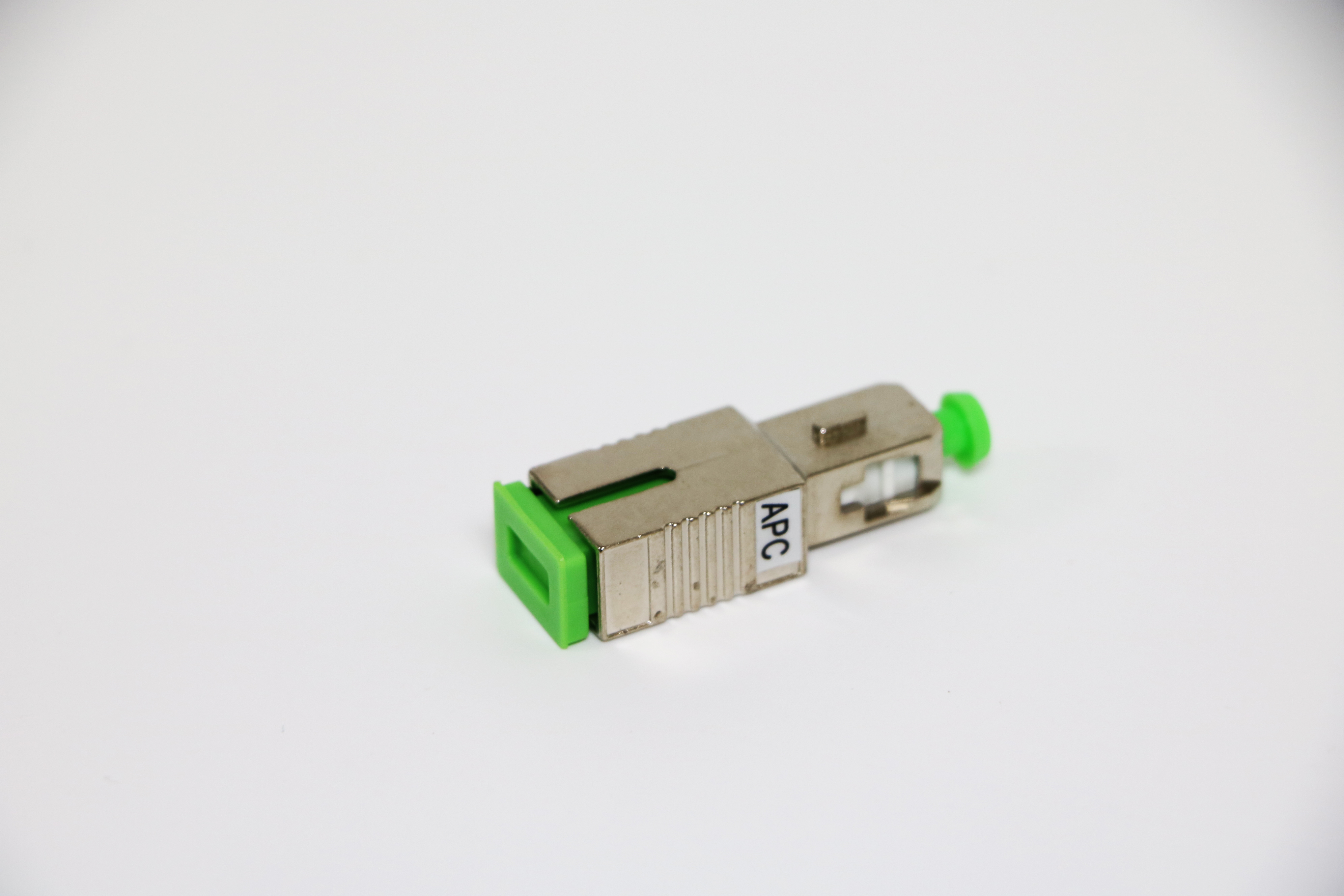

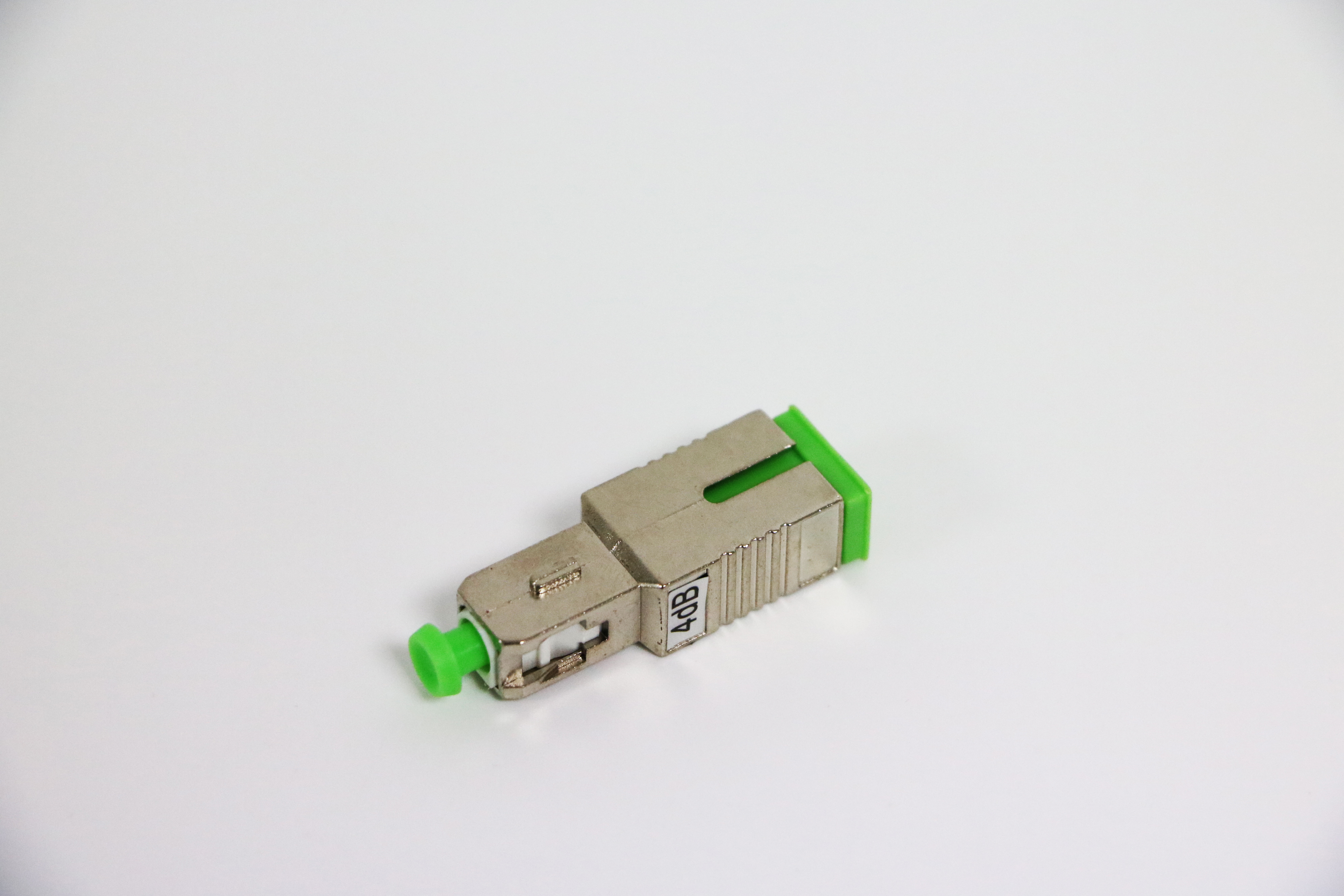

SC APC FTTH Fiber Optic Attenuator , multimode optical attenuator Images
